Video Wall Controllers DXN5000 series

Special built for Mission Critical Control Room applications, NOCs, Traffic Control, Emergency and Special Operation Centers

DXN5000 Video Wall Controller

DXN5000 Video Wall Controllers series overview

The DXN5000 series are video wall controllers for multi display walls, to visualize the Windows 10 desktop and live input video source overlays. Mix live video input overlays as physical inputs such as HDMI or SDI, VNC clients on the network as a source, IP cameras or other IP feeds, RSS ticker feeds or any application window on the built in Windows computer as a source window.

Features Overview

  • Integrated DXN5000 controllers drive multiple local or remote monitors to form one large Microsoft Windows compatible desktop (video wall)
  • Real time display of local or remote HDMI, DVI, DisplayPort, SDI, RGB, YPbPr, S-video or Composite video input sources such as PCs, Notebooks, video cameras, Blu-Ray players or Media players
  • Processing and display of 4K HDMI input signals in real time, in any position, in any size with pixel precise scaling and rendering
  • Visualization of remote workstations’ desktop image through the network
  • Expandable with multiple input and output boards supporting any video standard, Cat6 and Fiber Optic
  • Arbitrary positioning and overlapping of windows on the video wall
  • Full HDCP support for input signals and output connections
  • Independent matrix for embedded or analogue audio I/O signals
  • LAN and RS-232 control
  • Comprehensive DXWall software system with easy-to-use tools for wall management, video input handling and remote control
  • HTML5 based remote control from Windows, iOS, OS X or Android platforms, PCs, tablets, mobile phones
  • Dual, redundant power supplies
  • Designed and verified for 24/7 operation

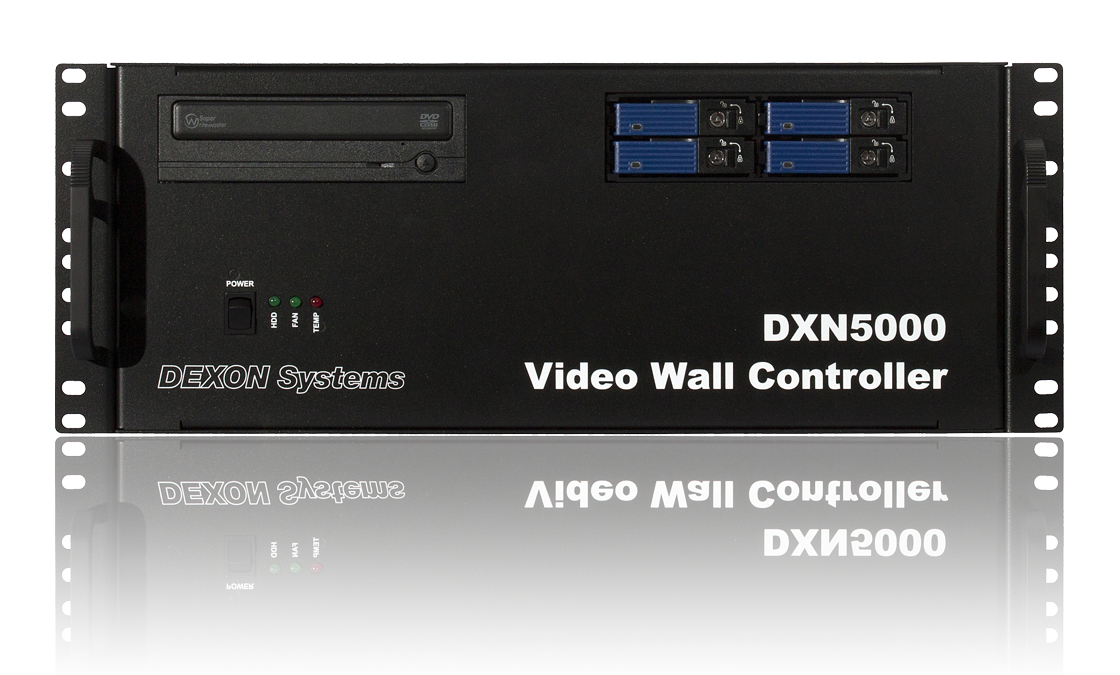

DXN5000 4RU 16×16 or 16×8

DXN5000 7RU 32×32 or 32×16

video wall controller

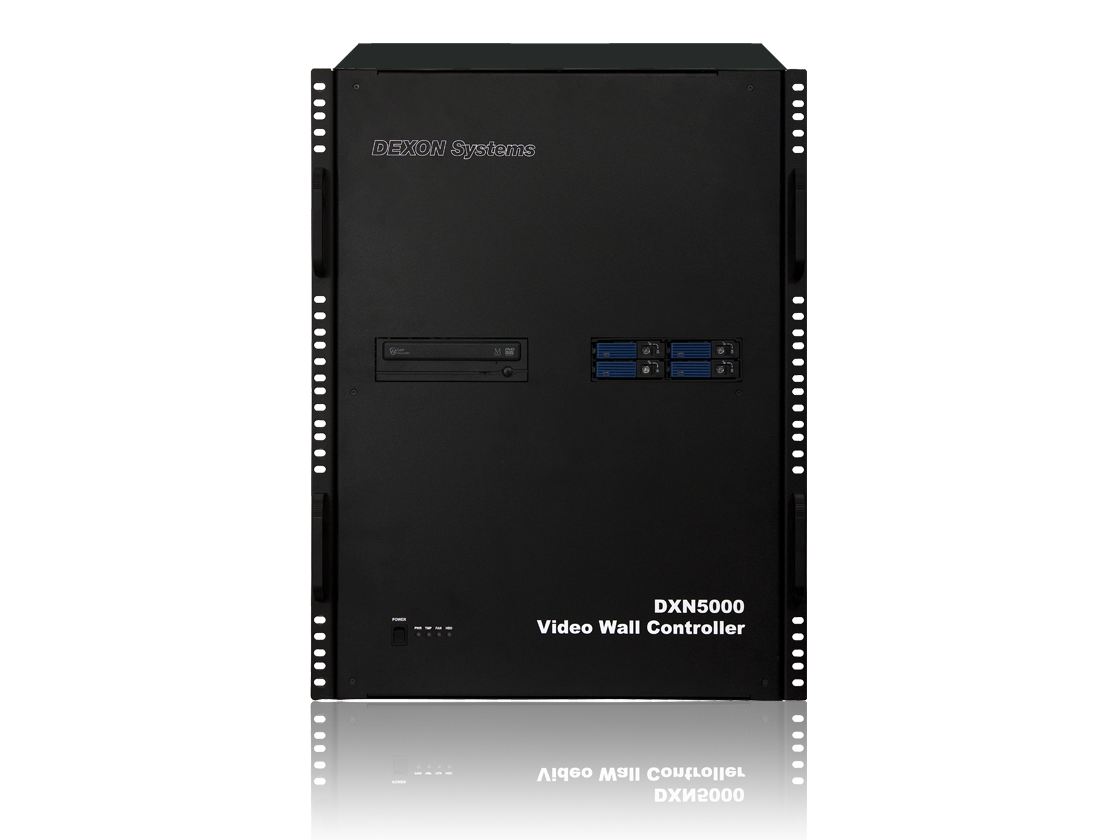

DXN5000 14RU 64×40 or 64×32

video wall controller

DXN5000 Models Overview

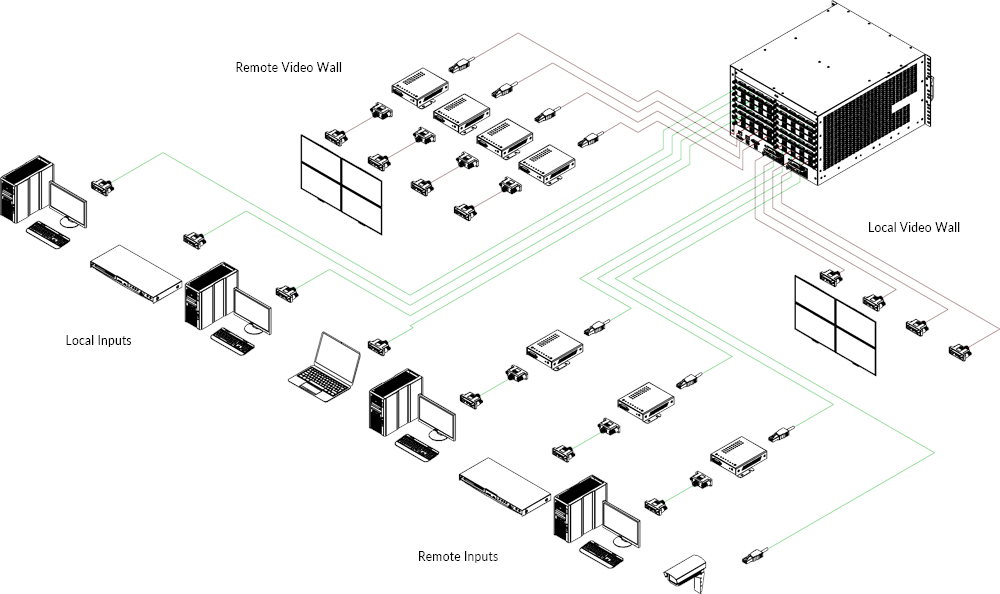

DXN5000 system example

DXN5000 system example

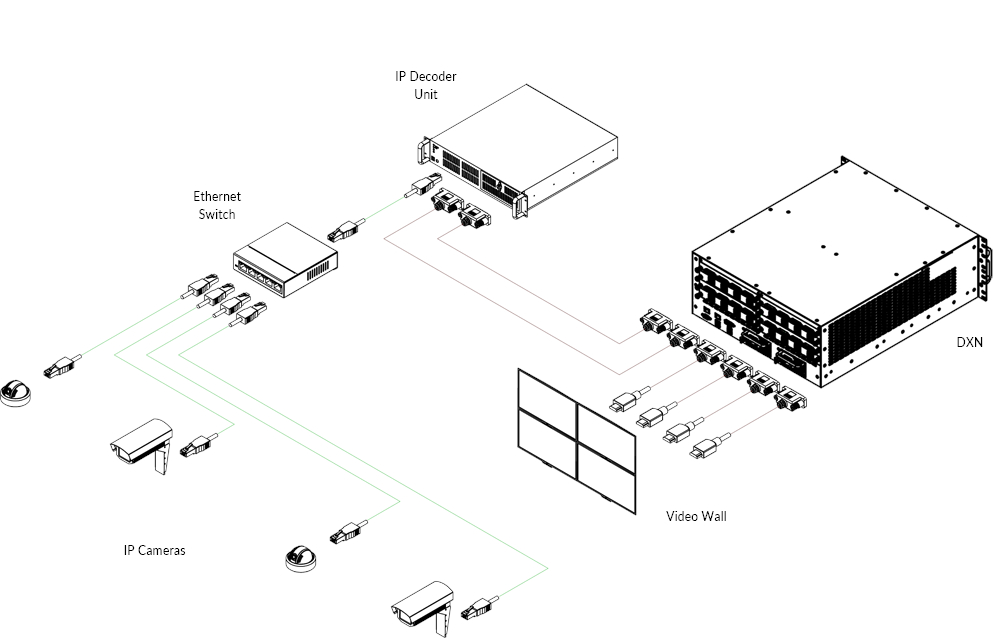

DXN5000 IP streaming inputs system example

DXN5000 IP streaming inputs

DXN5000 series explained.
