4K VIDEO PROCESSOR 16X16

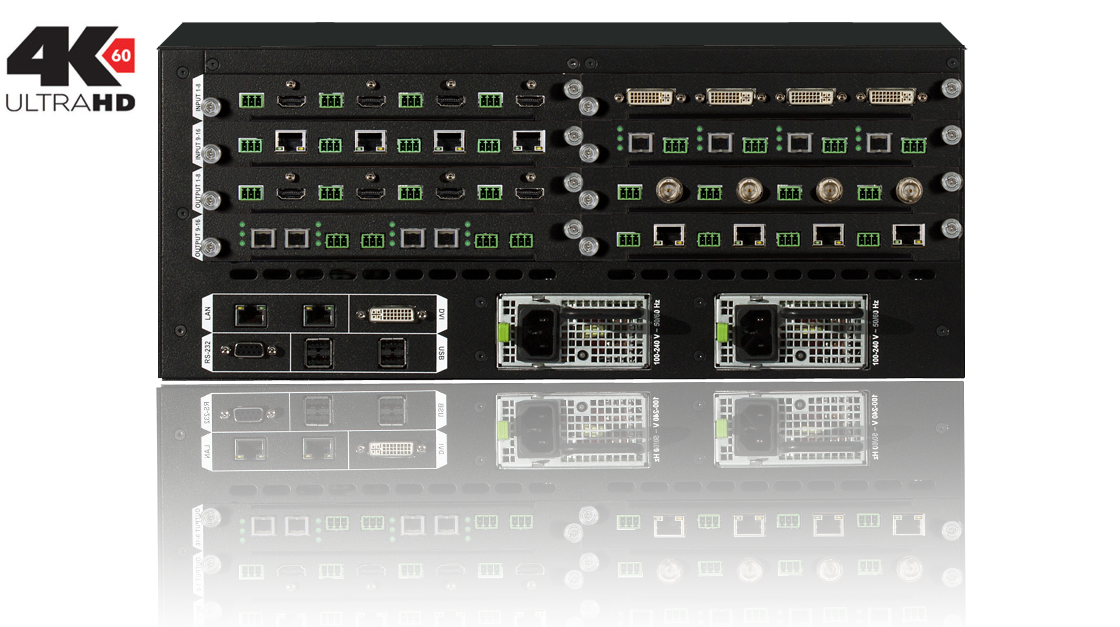

DIVIP1616 4K, 16X16, SCALING AND SEAMLESS VIDEO PROCESSOR

DIVIP1616 features

  • Video processor to form and control several video walls of different layouts and resolutions
  • Processes and displays all currently used video signal standards, HDMI signals up to 4K, direct HDBaseT and Fiber Optic connections
  • Support of different signal output types and resolutions up to 4K
  • Expandable from 4×4 to 16×16 with different input and output boards
  • Asymmetric modes supported (4×16, 16×8, etc.)
  • Professional quality tuning services as pixel motion adaptive de-interlacing, 3D adaptive comb filtering and adaptive 3D noise reduction
  • High quality scaling up or scaling down of input signals to the outputs
  • Full HDCP support for input signals and output connections
  • Precise  EDID management
  • Real seamless signal switching, transition effects, PIP rendering of input signals
  • Independent audio matrix for embedded or separate analogue audio signals
  • Local control through locally connected keyboard, mouse and monitor
  • HTML5 based remote control with professional graphics user interface from any software platform, Windows PC, Android tablet, iOS mobile phone
  • LAN and RS-232 control
  • Dual, redundant power supplies
  • 19″ rack-mountable, 4U high enclosure

DIMAX-Pro Series overview

The DIMAX-Pro Series (DEXON 3-in-1 solution) is an all new 4K hybrid presentation matrix family. This product family integrates presentation matrix, routing matrix and video processor into a single chassis.

  1. Routing Matrix – performs signal conversion and matrix switching from any input to any or multiple outputs
  2. Presentation Matrix – offers scaling, seamless switching, crossfade switching and picture-in-picture rendering
  3. Video Processor – can drive video walls with real time display and scaling of input signals to any output screen or wall position

The DIMAX-Pro Family includes 16×16, 32×32 and 64×64 chassis, with multiple, 4-channel input and 2 or 4 channel output boards, which make the product extendable from 4×4 to 16×16, 32×32 or 64×64. Also included in the DIMAX-Pro family are non-modular products such as 4×4 and 8×4.

DIMAX-Pro Series main features include the following and more.

  • Input Overlays
  • Multi-format Inputs & Outputs
  • Expandable 4×4 to 16×16, 32×32, 64×64
  • Format conversion
  • Scaling
  • Extension with Cat6 or Optical
  • Picture in Picture (PiP)
  • Hierarchically assigned operators and rights
  • Live preview of multiple input signals

DIMAX-Pro 3-in-1 Solution

DIMAX-Pro products all feature 3-in-1 functionality. These modes can be set on an individual output level and grouped by sections of outputs. You may define any 1 or all inputs to be part of any output section. You may combine any of the 3 modes within the same DIMAX-Pro switcher by easy software setup.

  1. Routing Matrix – performs signal conversion and matrix switching from any input to any or multiple outputs
  2. Presentation Matrix –  offers scaling, seamless switching, crossfade switching and picture-in-picture rendering
  3. Video Processor – can drive video walls with real time display and scaling of input signals to any output screen or wall position

DIMAX-Pro 3-in-1 Switcher Modes Comparison

DIMAX1616


DIMAX-Pro Input Boards


DIMAX-Pro Output Boards

Contact Us to Learn More
